ALUNOR RF

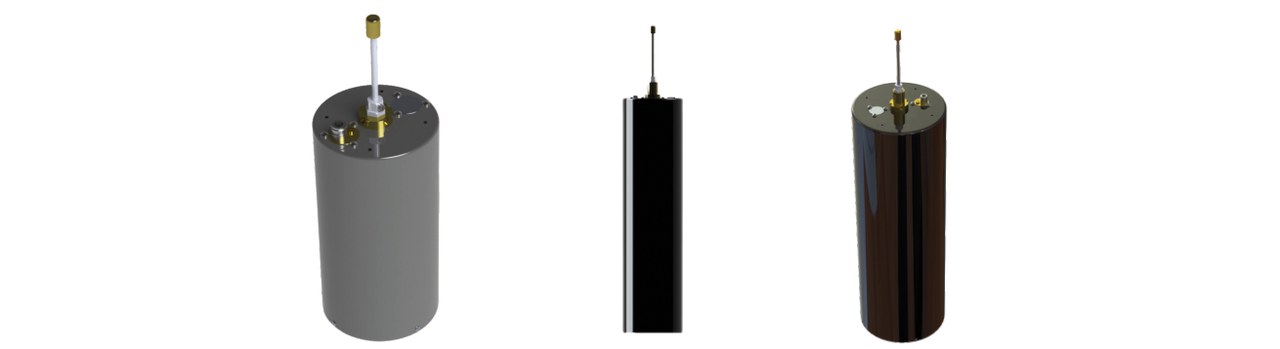

Cavity Pass-Reject UHF (5-Inch)

380-470 MHz, 5-inch cavity pass-reject, 0.3-2 dB IL tunable, 350 W, 1.26 kg.

  • Frequency
    380–470 MHz
  • Power
    35 W
  • Insertion loss
    < 0.3 dB
  • Connector
    N-Female
  • Weight
    1.3 kg
Request quote

Specifications

Electrical
Frequency range 380–470 MHz
Power handling 35 W
Insertion loss <0.3 dB
VSWR (max) 1.5
Impedance 5 Ω
Mechanical
RF connectors N-Female
Weight 1.3 kg
Dimensions (H × W × D) 300 × 127 × 127 mm
Configuration
Cavity Count 1
Cavity Topology Pass-Reject
Cavity Diameter Inch 5
Frequency Stability 0.8 ppm/C
Temperature Range -30C to +60C
Mounting 19-inch rack
Verified 2026-05-06 · ALUNOR RF Engineering · source: ALUNOR RF Technical Catalogue 2026-01-21

All measurements at 25 °C, 50 Ω, unless otherwise noted.

Why this product

  • 01

    5-inch cavity, 1.26 kg

  • 02

    Up to 350 W at 0.5 dB IL

  • 03

    Tunable rejection across 380-470 MHz

Technical brief

## Construction
5-inch cavity tuned for UHF pass-reject filtering, adjacent-channel rejection in compact form.
## Where this fits
Dense UHF deployments with collocated transmitters where intermod control is critical.

Need a custom configuration?

Talk to an application engineer about variants, custom tuning, or integration into an existing repeater chassis.
